Vise automation for milling machines
Instead of the raw part, LANG systems change the entire workholding device, the Quick•Point vise, in the machine: with a pre-programmed robot, or even without a robot, from the machine's tool magazine.
RoboTrex
robot cell
168 vises
storage, RoboTrex 52
25 (45) kg
workpiece, RoboTrex 96
2 m²
RoboTrex Compact
4 taper types
HAUBEX: HSK-A63 · SK40 · BT40 · CAT40
RoboTrex robot cells
Automation that requires no robot programming skills.
Pre-programmed robot, storage carts that can be loaded outside the machine, and connection via a free M-function of the machine. Each position has its own NC program.
Applications
Milling machines, machining centers
Small and medium batches
Varied workpieces
Benefits
No robot programming skills needed
Cart change without machine stoppage
Separate NC program for each position
RoboTrex systems
Three sizes, one operating logic.
All three systems come with a preconfigured Fanuc robot, can be operated without robot programming skills, and each position can be assigned its own NC program, from one-offs to series production.
New
RoboTrex Compact
For small parts with minimal floor space: up to 100 vises in two magazines, in roughly 2 m².
Robot
Fanuc M-10iD/16S
Storage
rack (2 magazines)
Capacity
100 (MG 46 Micro) / 50 (MG 77)
Vise
Makro•Grip 46 Micro, 77
Max. workpiece
120 × 100 × 80 mm
Max. weight
7 kg
Min. footprint
2000 × 1050 mm
Gripper change
yes
52
RoboTrex 52
From one-offs to larger batches. The vises sit on carts that can be loaded offline, so changeovers are possible without stopping the machine.
Robot
Fanuc M-20iD/25
Storage
cart, 30 or 42 vises
Capacity
120 / 168 vises
Vise
Makro•Grip 77
Max. workpiece
120 × 120 × 100 mm
Max. weight
15 kg
Min. footprint
1700 × 2200 mm
Gripper change
no
96

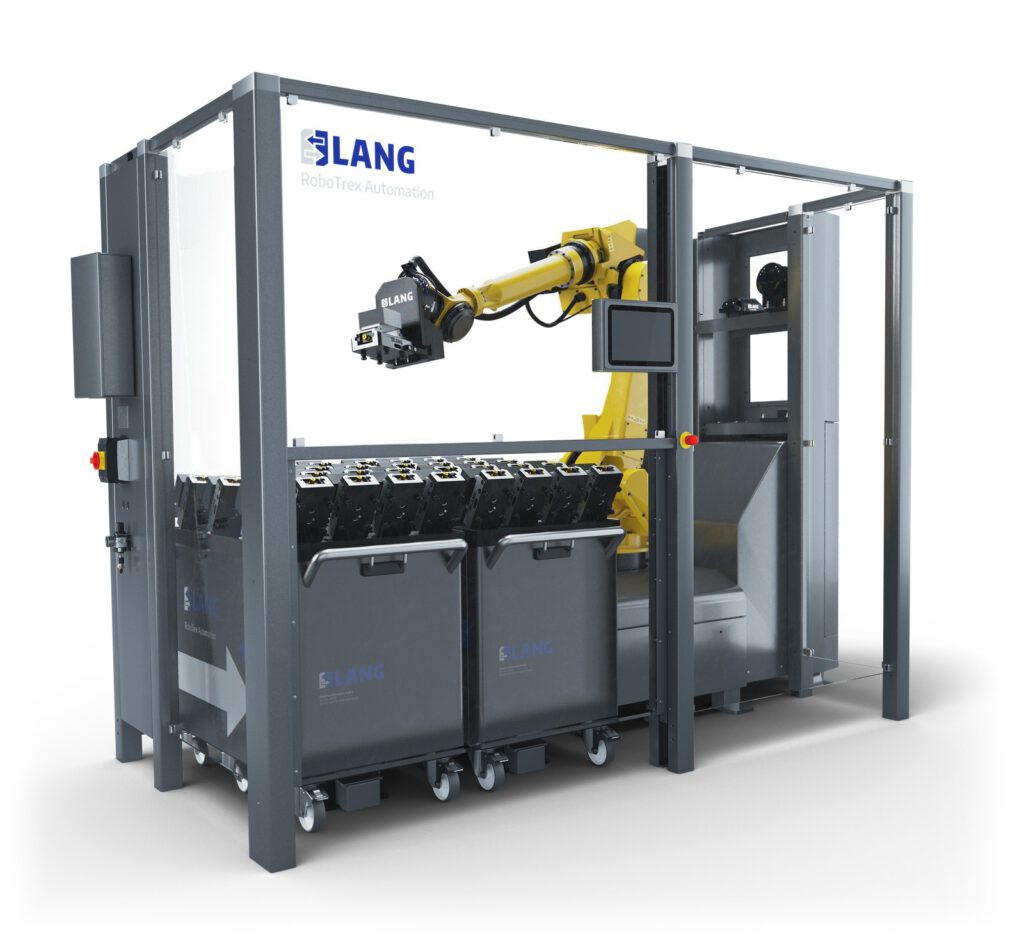

RoboTrex 96
For larger workpieces up to 45 kg, with Makro•Grip 125 vises. Thanks to the gripper change interface, RoboTrex 52 components can also be used.
Robot
Fanuc M-710iC/50 or /70
Storage
cart, 15 or 16 vises
Capacity
60 / 64 vises
Vise
Makro•Grip 125
Max. workpiece
205 × 205 × 90 mm
Max. weight
25 kg (option: 45 kg)
Min. footprint
2000 × 2700 mm
Gripper change
yes
New · Makro•Grip® Aero
Makro•Grip® Aero: the vise stays in the machine.
Pneumatic 5-axis vise with pre-stamping: the vise stays in the machine and the robot only changes the workpiece. This lets the entire process, from sawing to the finished part, run unattended.
Key data
77 mm jaws
Pneumatic opening and closing, 6 bar
52 mm grid, 16 mm clamping stud
Jaws
Standard serration
Full serration (FS)
Avanti base jaws
Automation without a robot

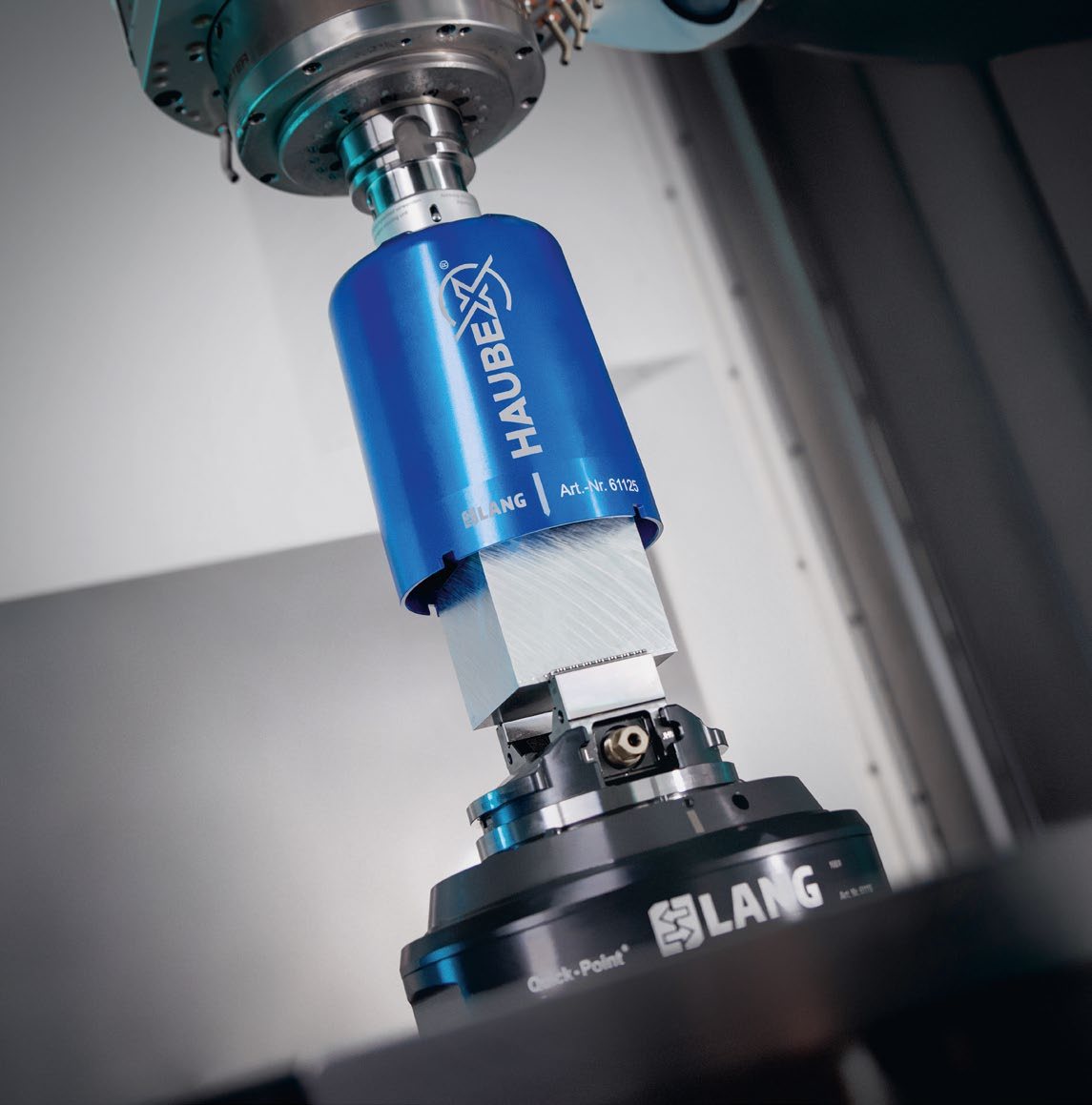

HAUBEX: the vise comes from the tool magazine.
The vise and the raw part travel inside a “hood” from the machine's tool magazine into the work area: no robot or pallet changer required.
HAUBEX
Machining centers with a tool magazine
Raw part up to approx. 80×75×70 mm
HSK-A63, SK40, BT40, CAT40
Benefits
No robot or pallet changer needed
Uses the machine's existing tool magazine
For unattended operation
Chip removal from the tool magazine

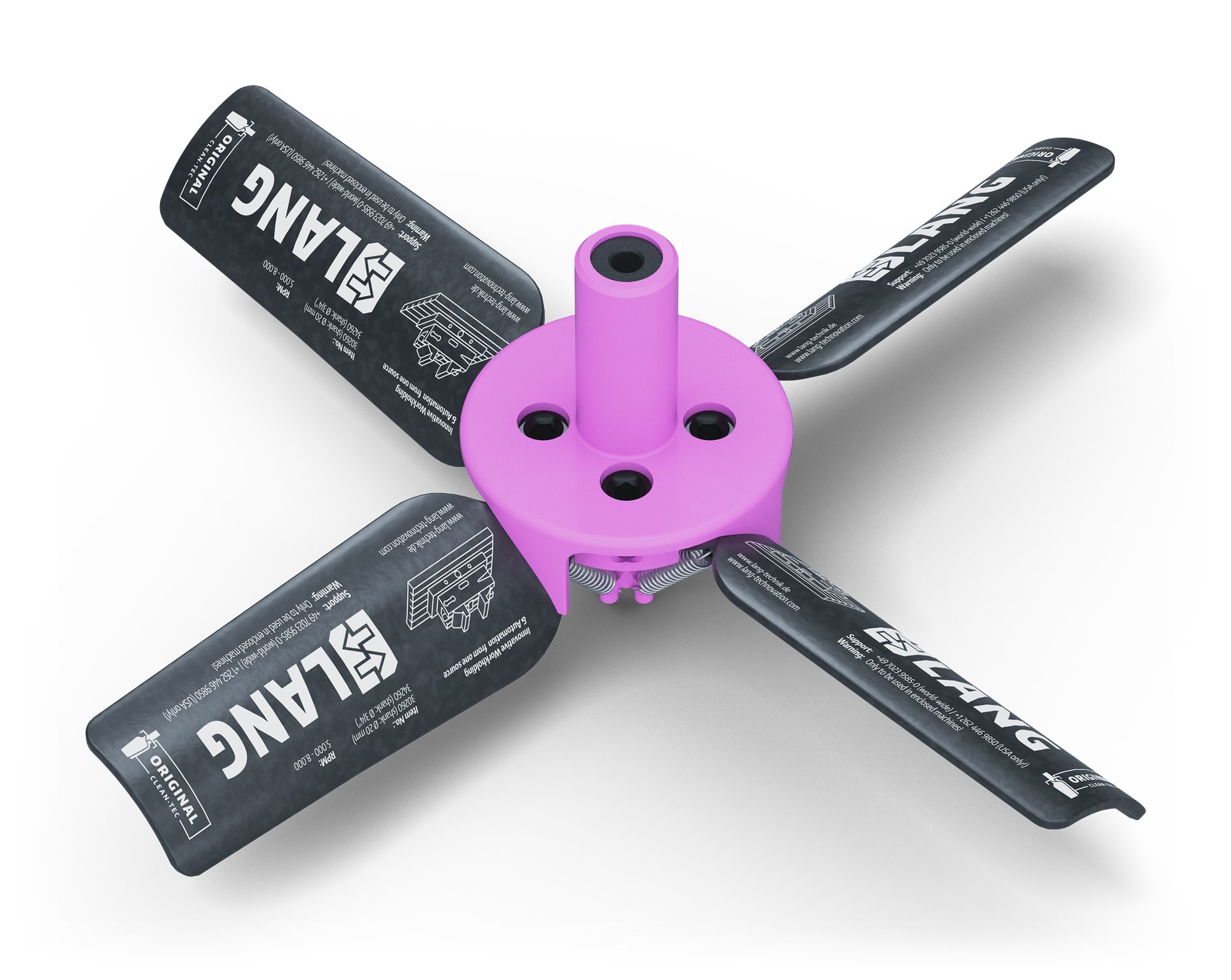

Clean•Tec: a chip-free work area.
The NC program calls the chip blower from the tool magazine: its unfolding blades clear chips and coolant without opening the door.
Variants
Clean•Tec 160: for pockets and bores
Clean•Tec 260: universal
Clean•Tec 330: for large surfaces
Benefits
Clean machine and surroundings
No compressed air needed
For unattended production
From the manufacturer
Detailed descriptions of RoboTrex and HAUBEX on the manufacturer's website, and the full range in the LANG catalog.
Related products
Good to pair with.
Let us automate your milling machine.
Send us your machine type and typical workpieces. We will get back to you within 1 day and propose a RoboTrex or HAUBEX solution with a payback calculation.
