Servo-driven door opening

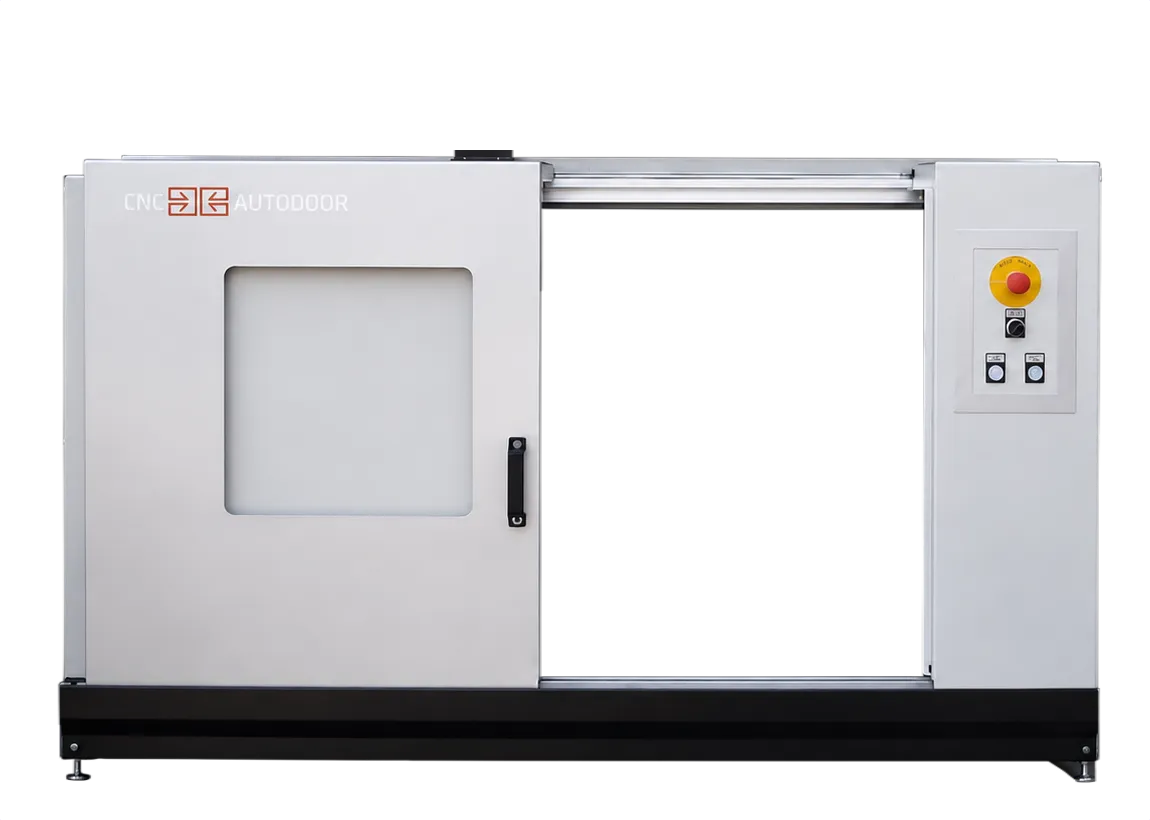

Automatic door openers for CNC machines

A complete servo-driven door opening system that needs no compressed air, for robotic or cobot machine tending, or simply as an ergonomic upgrade and for unattended production, on new machines and as a retrofit.

Request a quote +36 30 343 4433

a few hours

installation time in most cases, with a plug & play system

~30

variants

4000 mm

stroke

700 kg

door weight

24 months

warranty

When is it the right choice?

Where the door is the bottleneck.

In robotic machine tending, the door has to be automated too, but even with manual operation it makes a big difference when a heavy door no longer has to be opened hundreds of times per shift. Servo-driven opening is controlled, quiet and needs no compressed air.

Applications

Robotic and cobot machine tending

New machines and retrofits

Single and double doors, telescopic doors

Benefits

Servo-driven, no compressed air

Obstacle detection, robot integration

24-month warranty

Door types

For almost any CNC machine door.

Complete, ready-to-install systems for strokes up to 4000 mm and door weights up to 700 kg.

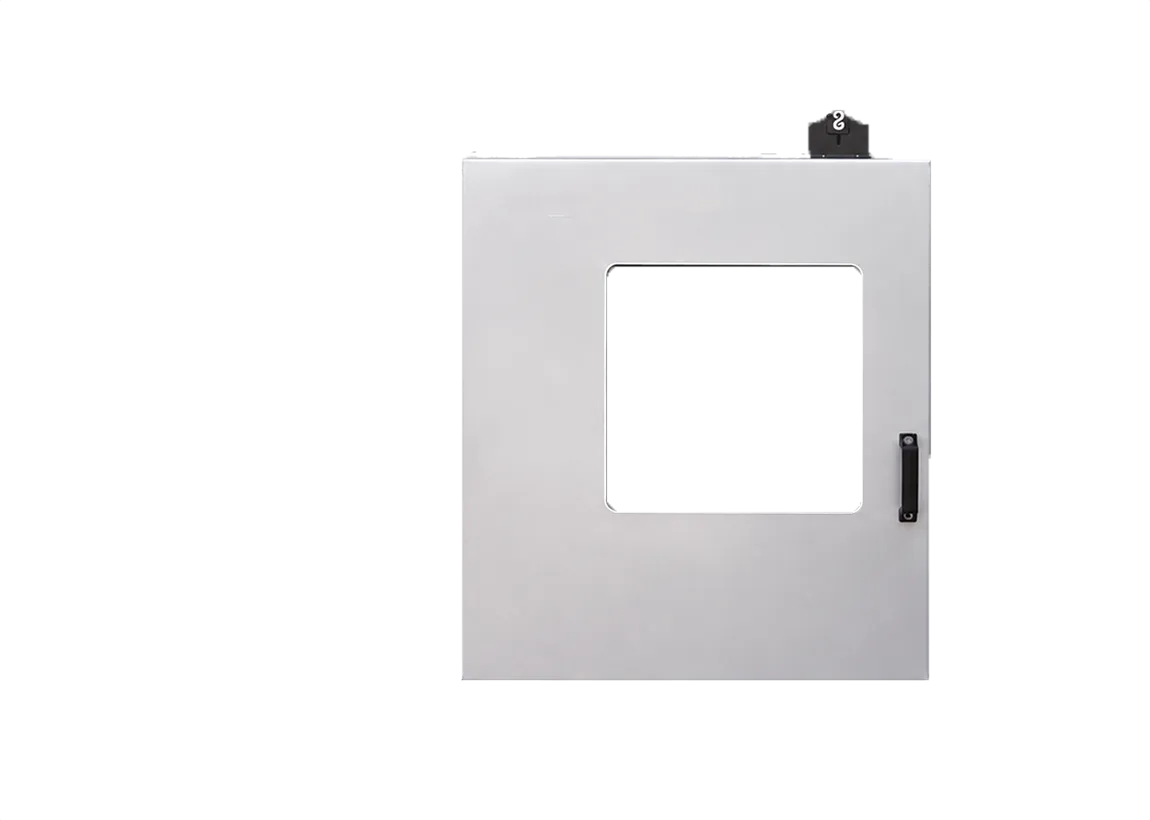

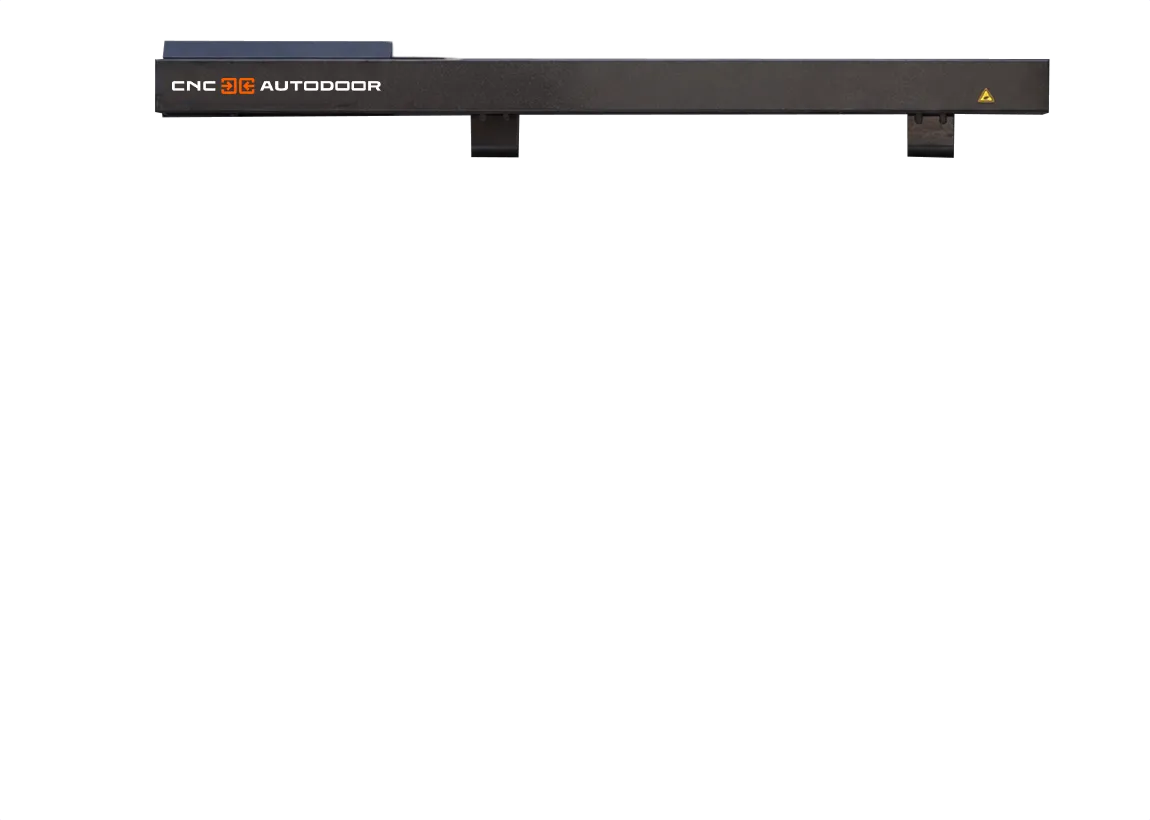

Single door opener

One door opener with one controller moves one machine door. Available in left-hand and right-hand versions.

Show types

Model · stroke

113 · 700 mm, 180 kg

200–700 mm

101 · 1000 mm, 180 kg

300–1000 mm

105 · 1000 mm, 400 kg

300–1000 mm

102 · 1500 mm, 180 kg

300–1500 mm

106 · 1500 mm, 400 kg

300–1500 mm

109 · 2000 mm, 400 kg

300–2000 mm

111 · 3000 mm, 400 kg

300–3000 mm

115 · 4000 mm, 700 kg

300–4000 mm

Double door, single drive

One door opener with one controller moves two machine doors opening in opposite directions simultaneously. Both doors have the same stroke.

Show types

Model · stroke

113D · 700 mm, 180 kg

2× 200–350 mm

101D · 1000 mm, 180 kg

2× 300–500 mm

105D · 1000 mm, 400 kg

2× 300–500 mm

102D · 1500 mm, 180 kg

2× 300–750 mm

106D · 1500 mm, 400 kg

2× 300–750 mm

109D · 2000 mm, 400 kg

2× 300–1000 mm

111D · 3000 mm, 400 kg

2× 300–1500 mm

115D · 4000 mm, 700 kg

2× 300–2000 mm

Double door, dual drive

Two door openers with two controllers. The two machine doors can open together or separately, even with different strokes.

Show types

Model · stroke

114 · 2×700 mm, 180 kg

2× 200–700 mm

103 · 2×1000 mm, 180 kg

2× 300–1000 mm

107 · 2×1000 mm, 400 kg

2× 300–1000 mm

104 · 2×1500 mm, 180 kg

2× 300–1500 mm

108 · 2×1500 mm, 400 kg

2× 300–1500 mm

110 · 2×2000 mm, 400 kg

2× 300–2000 mm

112 · 2×3000 mm, 400 kg

2× 300–3000 mm

116 · 2×4000 mm, 700 kg

2× 300–4000 mm

Telescopic door opener

One door opener opens two door panels moving in the same direction simultaneously, with a 2:1 stroke ratio. Available in left-hand and right-hand versions.

Show types

Model · stroke

106T · 1500 mm, 400 kg

1500 + 750 mm

118T · 2000 mm, 700 kg

2000 + 1000 mm

119T · 3000 mm, 700 kg

3000 + 1500 mm

115T · 4000 mm, 700 kg

4000 + 2000 mm
