CNC machine accessories / Bar feeding
Quick Load Servo family
Short bar feeders
Compact, fully electric, servo-driven bar feeders for bars no longer than the spindle. Changeover takes seconds, and bar positioning is precise and gentle.
100%
electric, servo-driven
Ø6–120 mm
bar diameter
≤ 1600 mm
bar length, up to the spindle length
15 s
diameter change (QLS 65)
585 mm
slide-away for service, no realignment needed
When is it the right choice?
A compact solution for bars no longer than the spindle.
On conventional CNC lathes running small and medium batches, a short bar feeder pays for itself quickly: changeover takes seconds and the machine keeps running unattended.
Their small footprint lets them fit where a long bar feeder would not. If needed, we survey your site to select the right model and interface for your machine.
Applications
Small and medium batches
Conventional CNC lathes
Limited space behind the machine
Frequent material and diameter changes
Benefits
Fully electric servo drive, only a power supply needed
Diameter change in 10–15 seconds
Precise, gentle bar positioning
Slides away for machine service, no realignment needed
How it works
From magazine to turret, unattended.
Watch the QLS 65 in action: loading, changeover and slide-away in the manufacturer's demo video.
01
Bar magazine
Bars are loaded into the magazine. The QLS 105 is also available with a standard, heavy-duty or lift magazine.
02
Servo loading
The servo drive and PLC push the bar to the turret precisely and without impact.
03
Quick changeover
Partial changeover in 15 seconds, full changeover with pusher change in approx. 2 minutes (QLS 65).
04
Slide-away for service
Slides away in the X or Z direction and locks with a foot pedal: no realignment needed after machine maintenance.
How it works

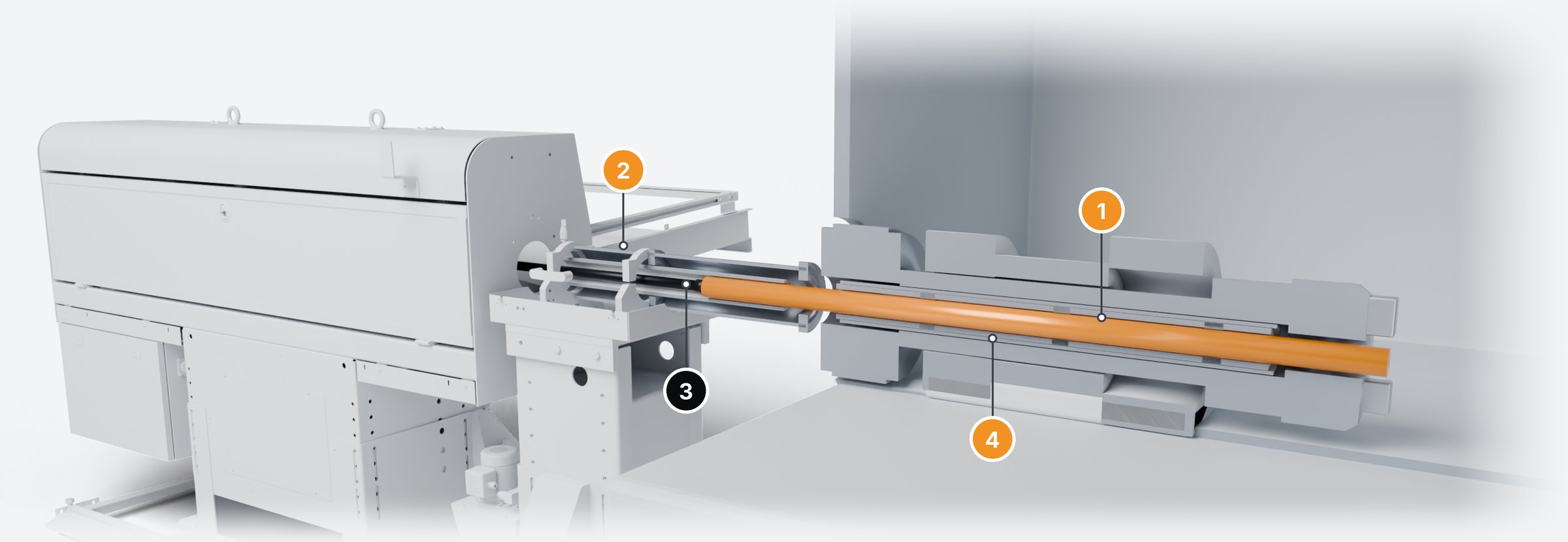

What if you need to feed 1.6 m bars?
A short bar feeder loads bars up to the length of the spindle. Add a spindle extension and bars up to 1.6 m can be fed as well.
1
Bar length
Set by the length of the spindle and the chuck. With a spindle extension: 1.6 m.
3
Pusher
Reaches up to 1680 mm and pushes the bar forward to the back of the collet: minimal remnant.
4
Spindle liner
Centers the bar in the spindle. Quick to change.
Before quoting, we check compatibility based on the machine drawings.
Models
Choose the right model for your machine.
Entry-level model
Quick Load Servo 65
Fully electric, cost-effective short bar feeder for simple jobs and medium to large batches, with a small footprint.
Bar diameter
Ø6–65 mm
Bar length
150–1300 / 1600 mm
Magazine capacity
620 mm
Changeover
15 s / 2 min
Versatile
Quick Load Servo 105
Fully automatic short bar feeder for small and medium batches, with quick roller change and a new user interface. Available in standard, long pusher and SLIM versions.
Bar diameter
Ø6–105 mm
Bar length
300–1600 mm
Magazine capacity
650 mm
Slide-away (X or Z)
585 mm
For large diameters
Quick Load Servo III+
Fully automatic short bar feeder up to Ø120 mm: automatic diameter adjustment, X or Z retraction and a 1000 mm side rack for longer unattended production.
Bar diameter
Ø6–120 mm
Bar length
100–1600 mm
Magazine capacity
1000 mm
Changeover
10 s / 2 min
Service and support
It doesn't end with installation.
Our own service team installs, maintains and overhauls LNS bar feeders nationwide, from machine integration to decades of operation.
Request service01
Installation and integration
Machine interface, setup and operator training.
02
Spare parts from stock
Rollers, guide tubes and pushers, fast and in OEM quality.
03
Overhaul
Overhaul and upgrade of older bar feeders.
04
Remote support
Fast fault diagnosis by phone and remote access.
From the manufacturer
Detailed technical data and the full LNS bar feeder range on the manufacturer's website.
Related products
Good to pair with.
Which QLS fits your machine?
Send us your machine model and bar sizes, and we'll make a recommendation within 1 day.
