CNC machine accessories / Cutting tools
Carbide insert systems
Tools for Swiss-type lathes
Ground carbide insert systems and tool holders for Swiss-type lathes, cam-type and multi-spindle automatics. Custom inserts made to drawing are also available.
Mini
Quick change tool system
13
insert lines
up to Ø42 mm
parting off, TGPline
8 machine brands
with machine-specific holders
custom
inserts made to drawing
When is it the right choice?
Small parts, tight tolerances, fast changeover.
On a Swiss-type lathe, tool space is tight, cycle times are short and every minute spent changing tools counts. BIMU delivers stable, repeatable machining with rigid insert clamping and quick-change holders.
Applications
Parting off, grooving, back turning
Turning and threading
Internal machining
Benefits
Rigid X-Centering insert clamping
Quick change mini: fast tool changes
High-pressure internal coolant (IK)
Product groups
Inserts and accessories for Swiss-type lathes.
The BIMU range has two main parts: ground carbide inserts, and holders and accessories matched to the machine. We recommend the exact type based on the machine model and the operation.
Inserts

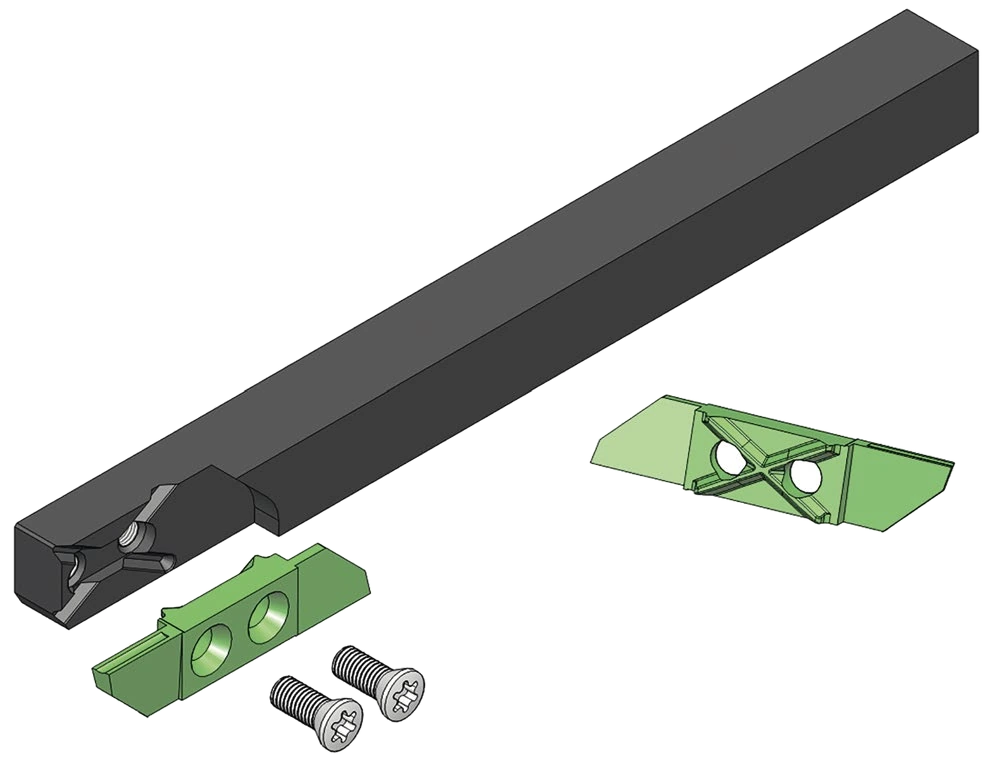

Standard inserts
13 insert lines for parting off, grooving, turning and internal machining, up to Ø42 mm.
800line+, OXOline, TGPline
X-Centering or V-seat clamping
ISO inserts: CCGT, DCGT, VCGT
Inserts

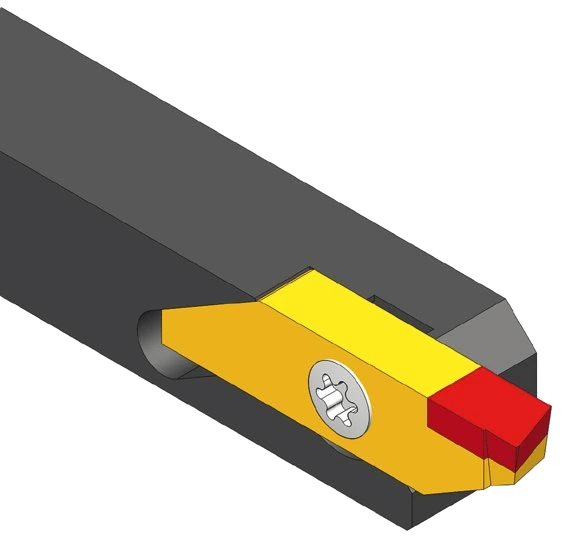

Special inserts
Geometries made to drawing for complex parts.
Sline: fully custom geometry
PCD (diamond) tipped inserts for the watch industry
Carbide knife for plastics and PEEK
Accessories
For the gang

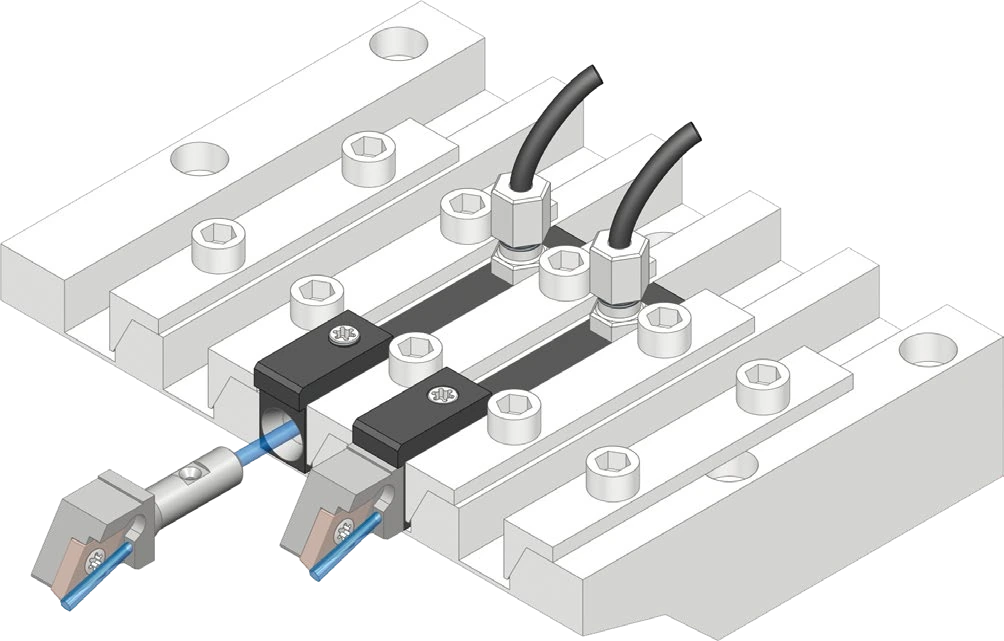

Holders and quick-change systems for the gang tool post of Swiss-type lathes.
Quick change mini (IK): change without removing the holder
IK holders with high-pressure internal coolant
400RD double holder, Tecko modular system
Accessories
Front tools
Tools for front operations on the main and sub-spindle.
Quick change diameter: quick-change system with cylindrical shank
B8 precision collet holder and collets
Counter-operation holders with micrometric height adjustment
Accessories
Transverse tools
Tools for transverse operations on Swiss-type lathes.
Polygon cutters with inserts
For parts with 3, 4 or 6 sides
Accessories
For multispindles
Holders and modular systems for multispindle automatic lathes.
212R4-3-90 holder for machining small parts
Göltenbodt GWS modular system
Accessories
Sets of tools
Tool sets put together for a machine model or an industry.
Tornos SwissNano and Micro 7/8
Escomatic D2, D4, D5
Watchcase machining
Accessories
External devices
Add-ons for single and multispindle automatic lathes.
High-pressure pumps (Combiloop)
Hydraulic connectors up to 250 bar
DriveKD adjustable coolant nozzle, mini precision vice
Standard insert lines
13 insert lines, up to Ø42 mm.
The lines differ in insert length, clamping method and maximum parting-off diameter. Most lines come with several geometries.
Parting off and turning
Ø = maximum parting-off diameter
040line
Ø8 mm · 24 mm, V-seat
400line
Ø8 mm · 20 mm, X-Centering
700line
Ø16 mm · 37 mm, 2 screws, V-seat
800line
Ø18 mm · 32 mm, X-Centering
800line+
Ø18 mm · high-performance geometries
OXOline 1000
Ø20 mm · 38 mm, X-Centering, 2 screws
OXOline 1100
Ø32 mm · 49 mm, X-Centering, 2 screws
Larger diameters and special lines
Ø = maximum parting-off diameter
900line
Ø34 mm · 37 mm, 2 screws, V-seat
TGPline
Ø42 mm · turning, grooving, parting off
500line
plunging and turning, steel and stainless
2000line
internal boring
ISOline
CCGT, DCGT, VCGT
VPGT
Multiturn-Dec, wiper geometry
In action
Quick change inside the machine.
The manufacturer's videos show how tools can be changed in seconds, without readjustment.
Quick change mini
Quick-change system for the gang tool post.
Quick change mini IK
The same with high-pressure internal coolant.
Quick change diameter
Quick change for front-working tools.
By machine
For the most widely used Swiss-type lathes.
The BIMU range is organized by machine type: we recommend the holder and insert that fit your machine, for cam-type and multi-spindle automatics too.
Citizen
Star
Tornos
Tsugami
Hanwha
Nexturn
Goodway
Maier
From the manufacturer
The full BIMU tooling range for Swiss-type lathes, with inserts and holders, on the manufacturer's website.

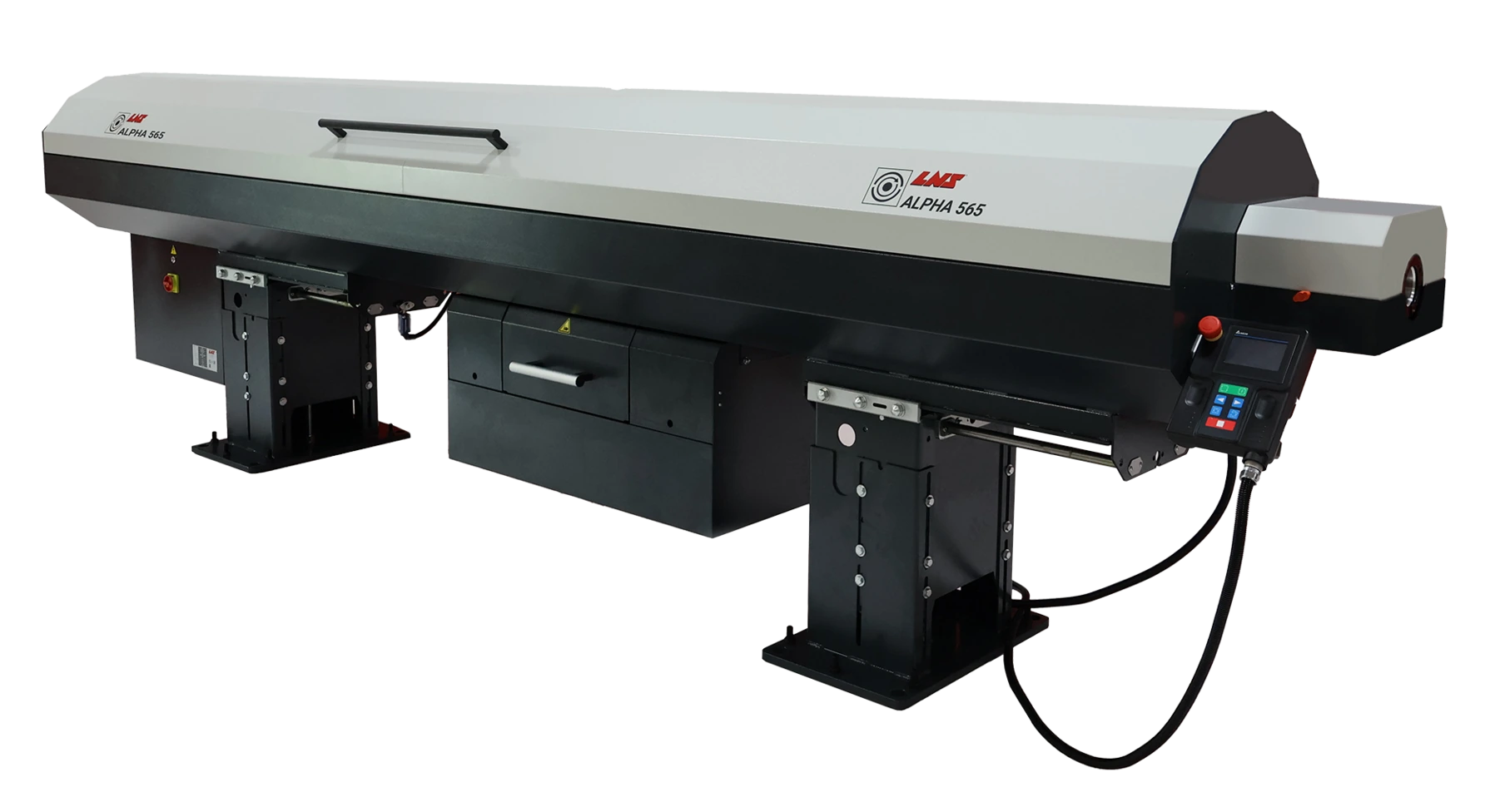

Related products
Good to pair with.
Which tool fits your Swiss-type lathe?
Tell us the machine type and the operation, and we'll recommend the matching holder and insert within 1 day, including custom inserts.
